Rubber O Mountings

Get a Price/Quote

Product Details:

Nitrogen Content (%) <0.5%
Weight 50g - 250g per piece (approximate, varies with size)
Water Absorption <1%
Thickness 10-50mm (custom options possible)
Components Rubber body, metallic insert/bushing
Tensile Strength 10-18 MPa
Flame Resistance Level Standard/non-flame retardant (flame retardant available on request)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Rubber O Mountings Price And Quantity

Minimum Order Quantity 25000 Piece

Rubber O Mountings Product Specifications

Tensile Strength 10-18 MPa
Thickness 10-50mm (custom options possible)
Water Absorption <1%
Weight 50g - 250g per piece (approximate, varies with size)
Nitrogen Content (%) <0.5%
Components Rubber body, metallic insert/bushing
Surface Finish Smooth, matte
Usage & Applications Machinery vibration isolation, automotive engines, HVAC units, industrial equipment mountings
Volatile Matter (%) <1%
Product Type Rubber O Mountings
Tolerance 0.2mm
Material Natural rubber, synthetic rubber compounds
Feature Excellent vibration damping, good weather and oil resistance, robust construction
Flame Resistance Level Standard/non-flame retardant (flame retardant available on request)
Hardness 40-80 Shore A
Thermal Conductivity Low
Length Various lengths available depending on requirement
Part Type Mounting/Anti-vibration mount
Color Black (standard), also available in custom colors
Width Standard and customizable as per requirement
Natural Rubber Available as an option
Density 1.4 Gram per cubic centimeter(g/cm3)
Size Available in multiple sizes: 40mm, 50mm, 60mm diameter and more
Rubber Type NR, NBR, EPDM, SBR
Resistance level High vibration and shock resistance
Style Round/O-shaped with central fastening hole
Ash % <3%
Diameter 40mm-120mm
Temperature Resistance -30C to +80C
Compression Ratio Up to 15%

Rubber O Mountings Trade Information

FOB Port jnpt
Supply Ability 5000 Piece Per Day
Delivery Time 4 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India

Product Description

Additional Information:

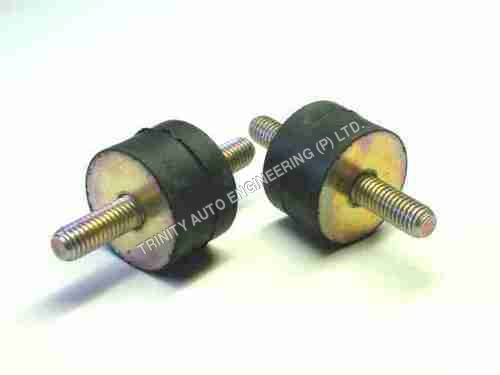

Commonly referred as O mounts, these rubber products are useful for reducing noise or vibration of engines of industrial equipments like compressors, air conditioners, automotive radiators, generators, vibratory feeder and electrical radiator.
Made of superior grade steel, especially carbon steel, these contain rubber made cylinder which is covered with non ferrous or ferrous metal made washers via bolts and nuts.
Even hole design of these mountings promote their secure connection with the engine.
These are offered in different specifications to suit exact deflection needs.

Advantages:

Simple installation method
Multipurpose usage
Minimal shear stiffness level
Exceptional compressive strength
Installation height can be lowered

Factors that need to be considered while choosing these mountings are:

Rate of static deflection
Thread specifications of used bolts and nuts
Highest compressive load
Shock enduring capacity
Load deflection attributes

Superior Vibration Damping and Durability

Our Rubber O Mountings boast high vibration and shock resistance thanks to advanced natural and synthetic rubber compounds. Integrated molded metal inserts, zinc-plated for corrosion resistance, enhance long-term durability in challenging industrial environments. These mounts provide reliable performance across a wide temperature range, making them ideal for both automotive and heavy machinery applications.

Versatile Sizing and Customization

Choose from a variety of diameters (40mm, 50mm, 60mm, up to 120mm) and thicknesses (10mm50mm), with options for standard and tailored widths. OEM and ODM orders are accepted, allowing you to specify color, hardness (4080 Shore A), and material to perfectly suit your requirements. The simple bolt-on installation process adapts to most standard hardware configurations.

Export Quality and Longevity

Our mountings are packaged in export-grade cartons or as directed, ensuring secure delivery worldwide from India. When stored under recommended conditions, these products offer up to 5 years of shelf life. With low water absorption and a smooth matte surface finish, the mounts maintain optimal performance and appearance through extended operational use.

FAQs of Rubber O Mountings:

Q: How do Rubber O Mountings improve machinery operation?

A: Rubber O Mountings are designed to provide effective vibration isolation, minimizing operational noise, wear, and fatigue in machinery, engines, and HVAC units. Their unique rubber composition and integrated metal insert absorb dynamic loads and shocks, enhancing equipment longevity and stability.

Q: What installation process is required for these mountings?

A: Installation is straightforward: simply bolt the mounting into place using standard hardware. The central fastening hole and round/O-shaped design ensure compatibility with most industrial and automotive setups, allowing for quick and secure fitting.

Q: When should these mountings be replaced?

A: Under recommended storage and operating conditions, Rubber O Mountings generally last up to 5 years. Replacement is advised if visible cracks, significant deformation, or loss of vibration damping performance is noticed, which may result from extended use beyond suggested guidelines.

Q: Where are these mountings commonly used?

A: The mountings are widely applied in automotive engines, HVAC units, heavy machinery, and industrial equipment that require stable vibration isolation and shock absorption. Their robust construction and customizable features support various installation environments.

Q: What customization options are available for OEM/ODM orders?

A: OEM/ODM customers can request specific sizes, colors, hardness levels (4080 Shore A), rubber types (NR, NBR, EPDM, SBR), and packaging solutions. Additional features, such as flame-retardant properties, can also be included upon request to meet unique project specifications.

Q: How does the zinc plating benefit the metal inserts?

A: Zinc plating on the integrated metal inserts provides enhanced rust and corrosion resistance, which is essential for maintaining mount integrity and performance in humid, automotive, or industrial conditions. This helps extend the products service life.

Q: What are the main advantages of choosing these Rubber O Mountings?

A: Key benefits include reliable vibration damping, broad temperature resistance (-30C to +80C), robust tensile strength, low water absorption (<1%), and durable construction with customizable options. These features ensure optimal performance, longevity, and versatility for a wide range of applications.
